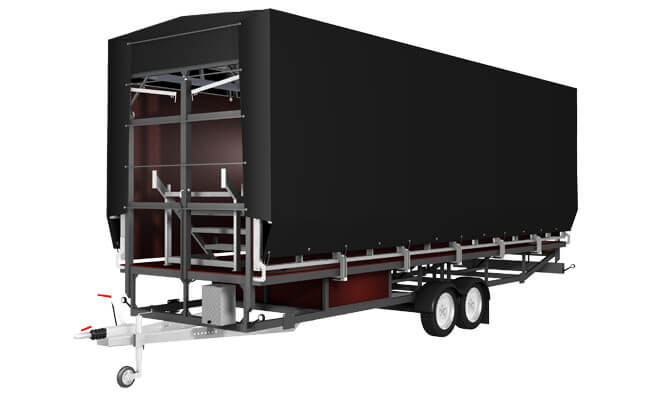

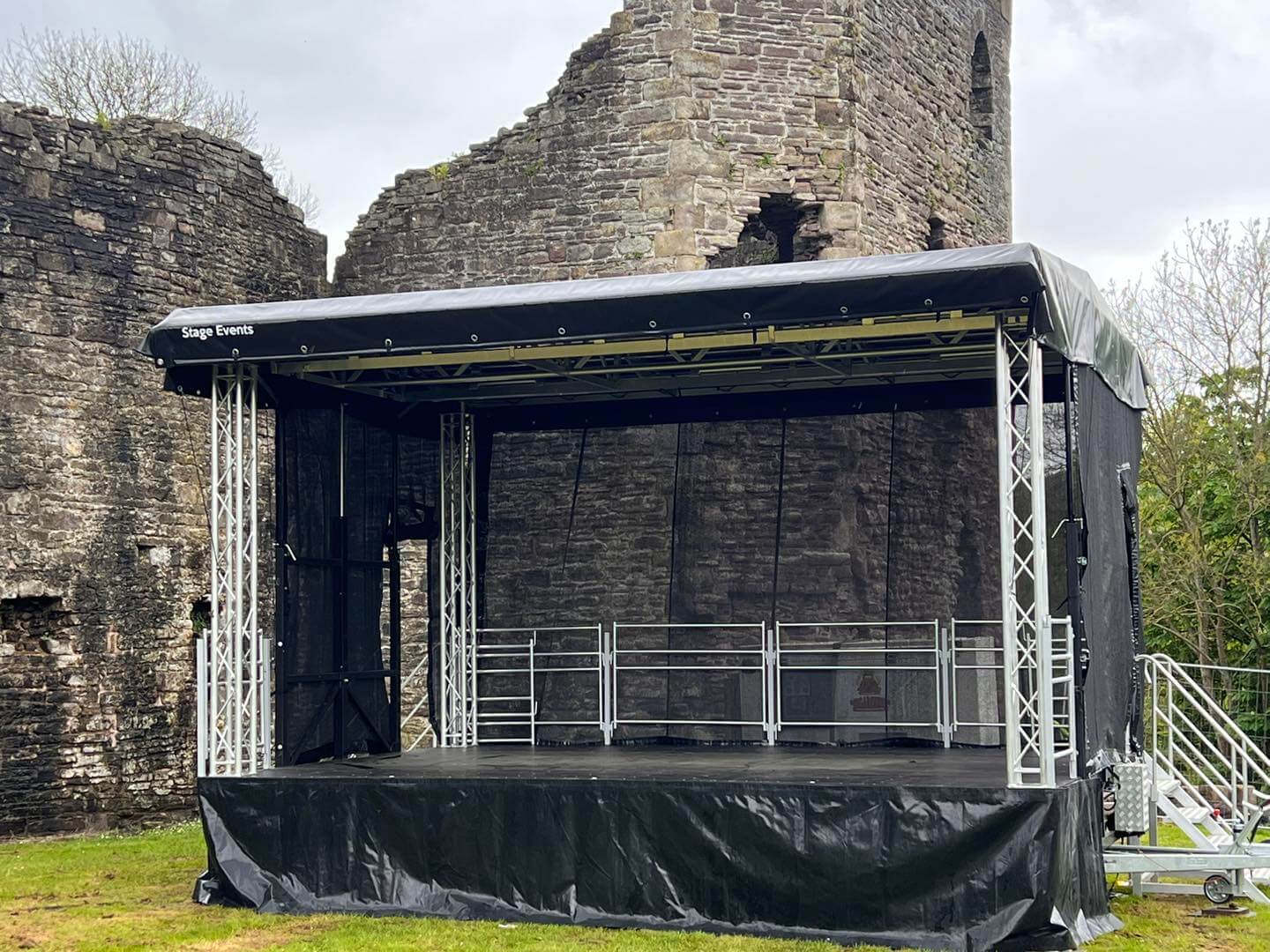

We own and operate a number of professional mobile trailer stages. These trailer stages have a 6m wide by 5m deep roof and is 3.5m high with a stage height of 1m from the ground. The total height is 4.5m. The stage floor has an area of 24 square meters. As we own several of these stage we can supply multiple hires on the same day! These stages are our most popular stage type for small to medium sized shows. The 6×4 stage can be used for outdoor shows, festivals and outdoor events.
PLEASE NOTE: PA wings DO NOT come as standard. If you would like us to include the PA/Advertising wings to the side of the stage, please let us know when making a booking. PA wings are charged as extra.
| Technical data | |
| Type of roof | standard 4.5 m high |
| Dimensions as a stage | Roof 6,0 m x 5,0 m – Floor 6,0 m x 4,0 m |
| Dimensions as a trailer | 7,4 m x 2,45 m x 3,6 m |
| Permitted total weight | 2500 kg |
| Stage floor area | 24 m2 |
| Height of stage floor | 1,0 – 1,3 m |
| Stage floor | slip proof, weather proof |
| Roof capacity | 30 kg – uniformly on front and back part of the roof (the end tube) 240 kg – uniformly on front and back part of the roof (the middle tube) 420 kg – uniformly on the middle part of the roof |
| Floor capacity | 3,5 kN/m2 (ok.350 kg/m2) |
| Quadrosystem front pillars load capacity | 50 kg |
| Flying Towers load capacity | 250 kg (in the middle point) |
| Max. wind speed | Wind zone 1 – 3 excepting the 5 km wide coastal areas and the islands of the North Sea and the Baltic Sea:. max 17.8 m/s with the back and sides cover and max 30 m/s without cover |
| Max. thickness of snow on the roof | Mobile stages should be used only in periods in which there is no snow, unless the snow is effectively removed, e.g. by installing the appropriate heating devices |
| Canopy | PCV certified material (flame resistant) |
| Scrim | A203 (black) |
| Installation time | 90 min (2 people) |
| Equipment | |
| Additional accessories and options | – Flying towers 2000cm wide by 3500cm tall each side
– Stage extensions for the front or back |
