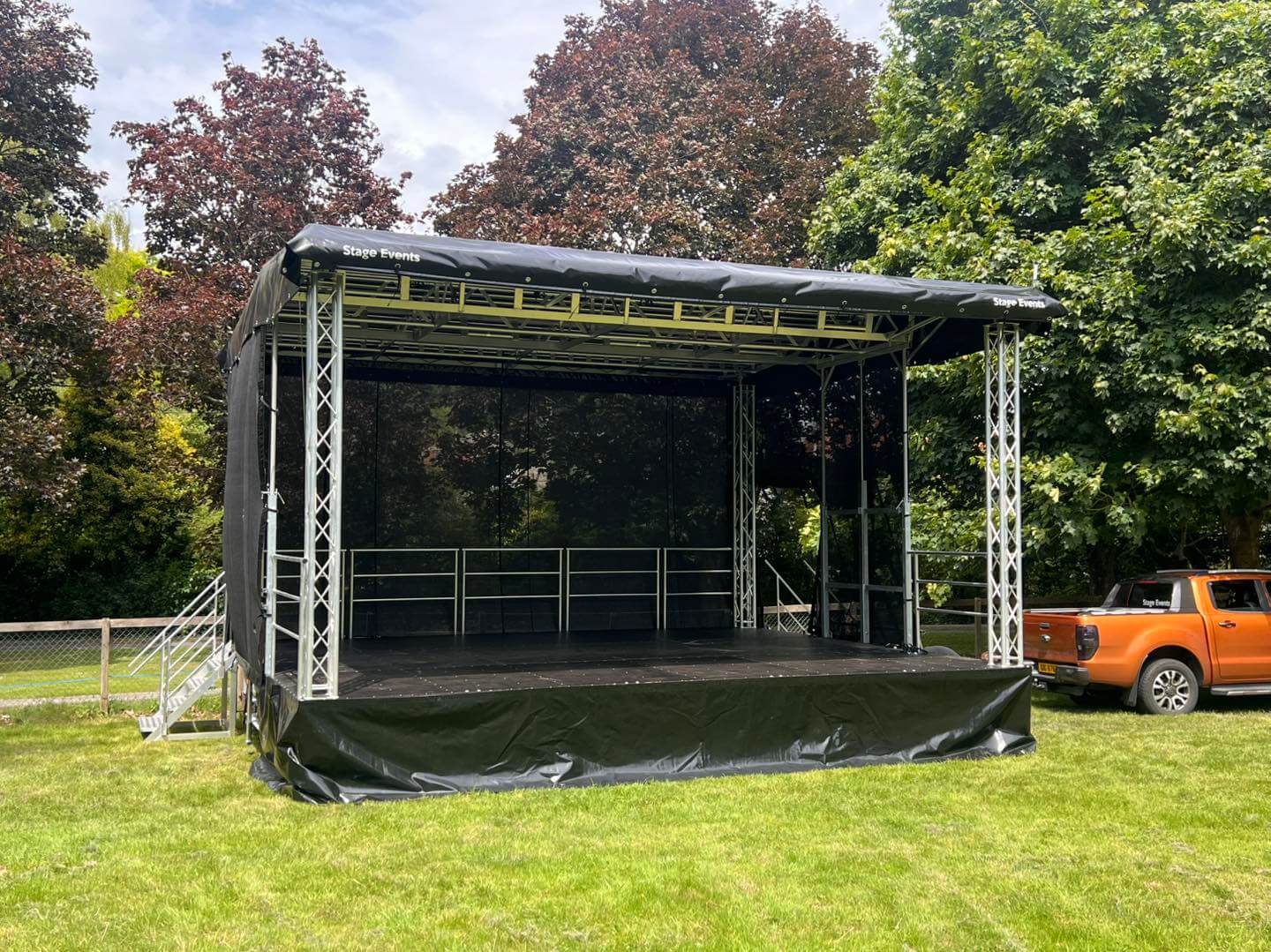

Stage Events can now offer our brand new 7m wide by 6m deep trailer stage. This stage has the same design as our standard trailer stages with a bigger floor span. With a massive 42sq meter floor span this stage can cope with the most demanding needs for a medium to large size festival.
7M X 6M TRAILER STAGE HIRE
| Technical data | |
| Type of roof | standard |
| Dimensions as a stage | 7 m x 6,0 m x 5,0 m |
| Dimensions as a trailer | 8,4 m x 2,45 m x 3,6 m |
| Permitted total weight | 2500 kg |
| Stage area | 42 m2 |
| Height of stage floor | 1,0 – 1,3 m |
| Stage floor | slip proof, weather proof |
| Roof capacity | 35 kg – uniformly on front and back part of the roof (the end tube) 280 kg – uniformly on front and back part of the roof (the middle tube) 490 kg – uniformly on the middle part of the roof |
| Floor capacity | 3,5 kN/m2 (ok.350 kg/m2) |
| Quadrosystem front pillars load capacity | 50 kg |
| Flying Towers load capacity | 250 kg (in the middle point) |
| Max. wind speed | wind zone 1 – 4 excepting the 5 km wide coastal areas and the islands of the North Sea and the Baltic Sea:. max 17.8 m/s with the back and sides cover and max 30 m/s without covers |
| Max. thickness of snow on the roof | Mobile stages should be used only in periods in which there is no snow, unless the snow is effectively removed, e.g. by installing the appropriate heating devices |
| Canopy | PCV certified material (flame resistant) |
| Scrim | A203 (white or black) |
| Installation time | 90 min (1-2 people) |
